There are two methods to making a prototype PCB: 1) Etch Your Own or 2) Send to a Prototyping Service. While there are many prototyping service options, most cause you to wait anywhere between 24 hours and 30 days before you get your boards back.

If you need a PCB done today, etching at home is a great option. Chemical etching involves all kinds of steps with all kinds of weird chemicals. If you don’t want your neighbors to think you’re the next Walter White, then mechanical etching is a better option. Which is why I bought an X-Carve from Inventables. It’s a CNC Milling Kit you build yourself.

Keep reading for my X-Carve CNC Review and first-hand experience on etching my first PCB. Plus, lots of pictures!

What is the X-Carve

X-Carve Logo on Gantry
Beautiful Gantry Logo

X-Carve is a CNC Mill, which ships in the form of a kit. As a kit, you can pick the pieces you want for your mill. In my case, I went with the fully loaded option, because I didn’t have anything to start with.

Basically this means I got stepper motors, belts, a waste board, limit switches, an Arduino Uno, a motor shield, wires, a few “maker slides”, a spindle (router) and lots of nuts and bolts.

Mini Screws for X-Carve's Limit Switches
Did I mention Lots? Big and Small.

Unpacking the X-Carve

My fully loaded kit is the one that runs about $1300 from Inventables. From what I can tell on the forums, I received one of the first kits which had a few bugs. You should be in great shape if you’re receiving yours now.

When it arrived, it came in a flat-pack style box with everything clearly labeled. Note my box was mishandled during shipping. Which cost me a weekend. I didn’t realize a few parts were damaged until half-way into my build.

Cracked Waste Board
Cracked Waste Board Gave Me A Sad 🙁
FYI. Inventables’ customer service support is fantastic. They quickly resolved this and the other minor bugs I encountered with this early kit. They’ve earned a customer for life after this project.

So do a full visual inspection of everything on arrival. For now, let’s move on with the X-Carve CNC Review: Building.

Building a CNC Mill

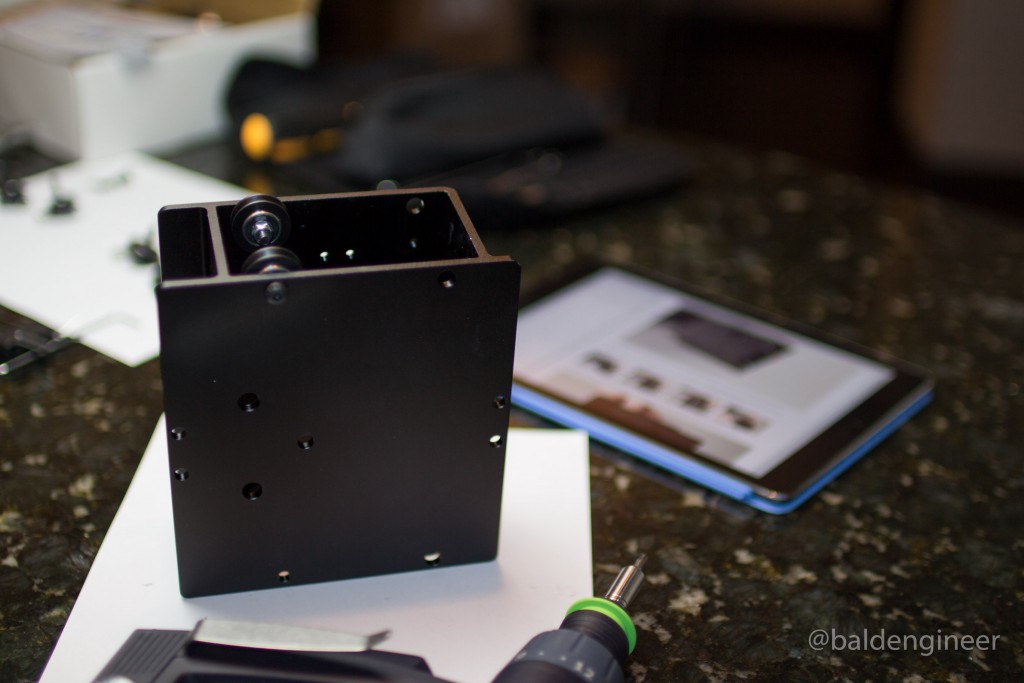

Diving in and building was something I really looked for to. So I got started on the X-Carriage right away.

X-Carve's Carriage and Instructions on an iPad
Tablet Friendly Instructions

One of the things I was grateful for were the clear videos and written directions on the Inventables site. If you hate paper as much as I do, you’ll really like that the X-Carve CNC’s build instructions are tablet friendly.


Like the kit, the instructions are also new (at this time). There are a few places where the pictures, written directions and videos slightly contradict each other. In those cases, I highly recommend taking a break to checkout the X-Carve’s discussion forum.

This is an excellent resource to search if someone else had a similar problem. If not, post a question. It won’t be long before you get a response. In fact, Zach the Inventables CEO helped me with a few of my questions posted on Saturday nights.

The Electronics

X-Carve with Arduino and gShield
This part I knew about…

The stepper controller and g-code interpreter are based on an Arduino Uno with a gShield to control the steppers. The pre-loaded firmware is GRBL, which is fantastic.

Overall, the electronics are the only aspect of the machine that feel under-served in terms of visual design.

There’s a nice panel for the front of the Power Supply. It mounts the Arduino and gShield neatly. However, all of the stepper wires come out of the front of the machine meaning you don’t really get to see it.

X-Carve with Electronics
The messy wires look bad against the beautiful machine.

From the picture above, you can see the “back” of my power supply but not the awesome looking front panel Inventables designed for it. Even if I had longer stepper wires, I’d still have a mess to route around.

There’s no question, I’ll be doing some mods on the wiring for my X-Carve in the near future.

The Software: Easel

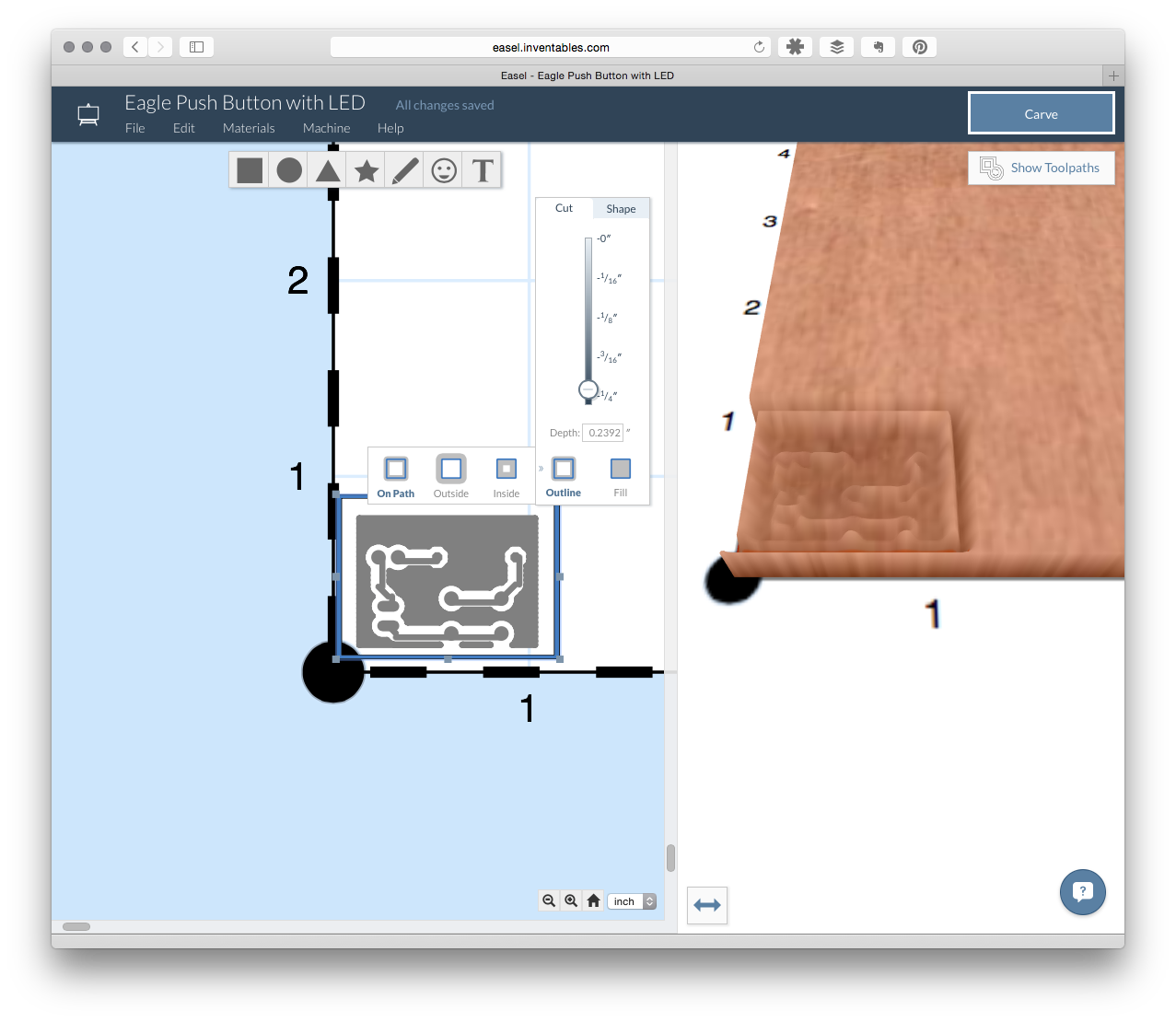

Easel is a web-based CAD/CAM software for their CNC machines. There is a relatively simple 2D CAD tool that lets you draw directly or place SVGs.

Easel is Web-Based CAD/CAM
Super simple (to use) CAD/CAM Software

The CAM view on the right, gives you an idea of what will happen when the mill runs.

From there, you select the material type and size of your bit. The intention of Easel is to set things like “speeds and feeds” for you automatically. Which is nice, because that’s where new CNC users always struggle.

Clicking “Carve” takes you through some basic setup with a step-by-step wizard. While it might seem silly at first, this wizard is a very nice addition.

When you don’t use a CNC every single day, it’s easy to forget to set your Z-Axis or remember to clamp your material down. This wizard will remind you.

Once it’s all done, X-Carve is away!!

Alternative: Universal G-Code Sender

If the “make my life simple” approach is too mainstream for you, check out Universal G-Code Sender. It’s a Java-based GUI that communicates with GRBL. You have full control over the CNC with GUI buttons or a text-based command system.

I actually found the “Set to Zero” and “Return to Zero” buttons counter-intuitive. Instead I found using the g-codes “G28” and “G28.1” to work out better.

Making PCBs

There are a few challenges with making PCBs, depending on the level of details you want. Does the X-Carve have what it takes to make PCBs?

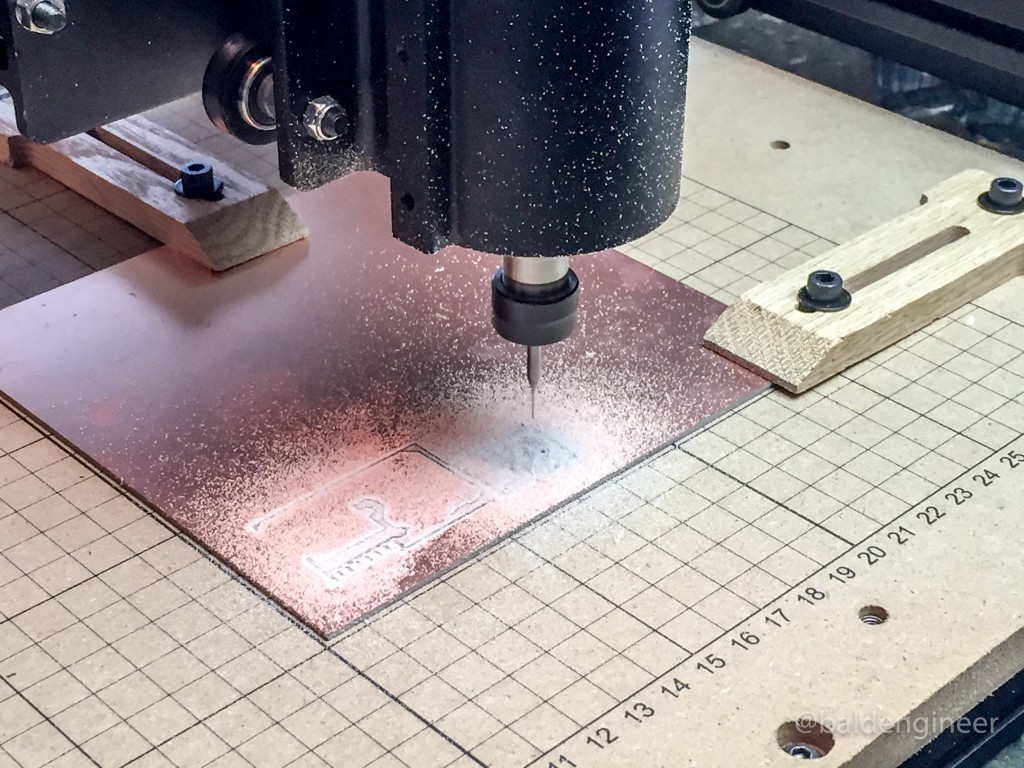

PCB Being Milled with X-Carve
Mill, Mill, Mill, Mill…. and Dust

Fiberglass Dust

Despite a pretty extensive amount of Internet and Real-World research, I can’t really figure out if fiberglass dust is harmful or not.

At the very least, it causes irritations. From what I can tell, it doesn’t cause long-term health issues. However, I list it as “something I’d rather not breath.”

(Also, it makes my hands itchy.)

Since the X-Carve’s standard build doesn’t include any kind of enclosure, you’re going to kick out some fiberglass dust. Copper Clad FR4 uses glass-based epoxy as the dielectric.

Inventables does sell “FR1″ circuit board blanks, which are based on a paper-based material. I’ll have to come back to that when I have a chance to look at them.

Copper boards aren’t flat

When you’re milling off 1-oz copper, it isn’t very thick. To maintain consistent cuts, the board needs to be perfectly flat.

Unfortunately, every PCB blank I’ve used has some amount of warping associated with it.

The MDF waste board and clamping system is convenient. However, it might not be enough to keep a copper clad board perfectly flat. More testing needs to be done.

Tips are delicate

An Air Cut is when you run the CNC Mill with the cutting bit high enough off the surface it won’t actually cut. The idea is to visually watch what it does to see if it’ll go anywhere dangerous.

I did about 30 minutes of air cutting to enjoy my X-Carve working!

After wards, I milled my first couple of test boards. Then, I broke in my machine, by breaking my 1/32-inch bit.

Have extra bits on hand! Eventually, you’re going to break one.

Conclusion: Is X-Carve Worth The Price?

Fully Built X-Carve from Inventables
Ready for some carving… er, milling.

There are a couple of other options on the market for around the same price that can mill PCBs. If your *ONLY* purpose for a CNC is to mill PCBs, you might want to check out something like the Othermill. At about half the size and twice the cost, it does come pre-assembled.

However, I’m a fan of tools that do least one task well and is useful for other jobs.

The X-Carve is a fully capable, fully functional CNC Mill. The extra ability is worth every penny I spent—at least for me. My machine is the 500mm x 500mm bed, but there is also a 1000mm x 10000mm option too. With a modular design it is actually possible to upgrade from one to the other…

If your budget doesn’t allow $1300+, then look at some of the trade-offs for a less expensive option. For example, you could skip the limit switches, use your own Arduino, go with smaller steppers or build one entirely from scratch. You can find the X-Carve on the Inventables web site.

For me, I’m pretty excited to get back to milling some new breakout boards and prototype PCBs.

But first…

The X-Carve CNC Review Score

As for an overall score, I’m giving this one 5 out of 5 LEDs. Being fully Open Source Hardware using Open Source Software is an excellent model. Plus, I can show everyone the CNC *I Built* myself. Last (but not at all least), it is backed by a great company with awesome customer support.

Review: 5 out of 5

Soon I’ll have a full tutorial on how to go from EAGLE to PCB with the X-Carve. Make sure you subscribe to my mailing list or RSS feeds to see when those are posted.
