Let’s talk a bit about how (and why) you would use a P-Channel MOSFET. Matt, and he’s not the only one, is probably asking this question based on the “myth” that P-Channel MOSFETs require “negative voltage” supplies.

Keep reading for how-to use only positive voltage in this p-channel MOSFET tutorial.

N-Channel and P-Channel MOSFET Tutorial Video

First, for some background, check out this AddOhms video tutorial about MOSFETs, I already made.

What’s different?

n-channel and p-channel mosfet tutorial (schematics)
MOSFET Symbols from Wikipedia

The actual construction of the two types of MOSFETs differ. There are plenty of those explanations out there on the layers. Instead, let’s focus on how you use them in a circuit.

VGS Threshold

The first thing we need to know about using MOSFETs is one of their critical properties: VGSth. Which stands for Voltage Threshold from Gate to Source. As the voltage difference between those two pins changes, so will the resistance from the DRAIN to SOURCE pins. This threshold is how a MOSFET turns ON and OFF.

How that resistance changes, depends on if it is an N-Channel or P-Channel MOSFET.

P-Channel MOSFET Tutorial and Explanation

Look at the VGSth for a P-Channel MOSFET. You might notice that VGSth is a negative value. We can use the datasheet from an IRF5305 as an example.

irf5305-vgs-threshold

Its VGSth is specified as a range: -2.0V to -4.0V. So, how could you possibly use this MOSFET with an Arduino, LaunchPad, Raspberry Pi, or any other microcontroller? Do you really have to generate negative voltages?

It’s about the difference

This spec is where the myth of the “negative voltage” comes in: Since the datasheet says negative, clearly, you need negative voltage to work. And datasheets, never lie (except when they do…).

Let’s literally read what the specification is saying. “Voltage from Gate to Source of negative four volts.” Using different words, you might read it as “GATE voltage value minus the SOURCE voltage value.”

Look at the voltages in this “high-side switch” configuration:

PChannel MOSFET with 5V Example

The GATE is now at 5 volts. The SOURCE is also at 5 volts. That means the Vgs is 5V – 5V = 0V. So the Vgs, in this case, is 0 volts. This voltage means the MOSFET is turned off, or an open.

Now, this is the same circuit, but the GATE is connected to ground instead of 5 volts.

PChannel MOSFET with 0V

Let’s look at the SOURCE and GATE again. The SOURCE is still at 5 volts. However, now the GATE is at ground which means it is 0V. If you take the GATE voltage minus the SOURCE, you get 0V – 5V = -5V. This will turn the MOSFET on.

See what just happened there? We got a “negative” voltage using only positive voltage supplies…

Why use N-Channel over P-Channel

We would need to dedicate a tutorial on when to use an n-channel and p-channel MOSFET. An excellent use for P-Channel is in a circuit where your load’s voltage is the same as your logic’s voltage levels. For example, if you’re trying to turn on a 5-volt relay with an Arduino. The current necessary for the relay coil is too high for an I/O pin, but the coil needs 5V to work. In this case, use a P-Channel MOSFET to turn the relay on from the Arduino’s I/O pin.

If your load voltage is higher, like 12 or 24V, then you might want to use an N-Channel MOSFET in a “low side” configuration.

Conclusion

Using a P-Channel with positive voltages is easy when connected to the circuit correctly. We just have to get over the myth that they work with “negative voltages.”

What’s the most creative MOSFET circuit have you seen?
Author

Fan of making things beep, blink and fly. Created AddOhms. Writer for Hackster.io News. Freelance electronics content creator for hire! KN6FGY and, of course, bald.

92 Comments

  1. James,

    Not sure you are still monitoring this page but your expertise would be very useful. I am using a P channel mosfet (IRF9540N) as a switch for a sensor system. The gate is controlled via the square wave output alarm system of a DS3231 RTC clock. The gate and source pins are bridged with 1k ohm resistor. The drain pin is connected to my Arduino. When I supply power to the source pin with a 9.6V series of AA batteries (2000mAhr) the system works fine, every half our the RTC square wave closes the MOSFET and the system powers on and then turns off after my measurements are completed. The problem has come when I’ve tried to increase the voltage and Ah to extend the battery life of the sensor. I would like to use a Li-ION battery with a 12.8V output and 7Ah. The MOSFET remains on continuously and does not respond to the RTC square wave. Is there a simple fix for the system (maye the 1k resistor isnt enough or too much) or do I need a new MOSFET? I apologize if this isn’t completely coherent, I’m not necessarily and expert. Thank you in advance for your help.

    • The capacity (Ah) of the battery is irrelevant.

      If you increased the Source pin’s voltage and it isn’t turning off, then make sure you are pulling the Gate’s voltage up to 12.8V.

      • Just wanna say thank you for this elaborative explanation. Very simple, straight to the point and insightful at the same time.

  2. thank you for a very good little explanation…!!! NOW… I have a 37 volt power supply.. I believe that I have to use a P-channel FET.. to be driven by the output transistor of a MC34063.. switch chippy.. the problem I have is the resistor I need across the DRAIN to GATE of the power P-channel MOSFET. I using IRF4905… so the output of the MOSFET.. is to drive a diode – coil – and cap.. so that I have a step down converter.. using the MC34063… I want to know what value resistor I should be using across from DRAIN to GATE…?? I hope that a 220 ohm 10 watt resistor should work.. and that the P-channel MOSFET .. is turned on.. hard enough .. the circuit is basically described above.. there is a 10 ohm resistor from GATE to the open collector of the MC34063. The emitter of the MC34063 chippy.. is grounded .!! So that when the MC34063 output transistor is turned on.. the GATE of the P-channel MOSFET.. is dropped to about 0 volts.!! This should totally enable the MOSFET .. and hopefully when this happens the RDs of the MOSFET is very low.!!! and so heat dissipation in the MOSFET is very low.??? so basically there will be almost 37 volts across the 220 ohm 10 watt resistor.!!! DOES THIS VOLTAGE ADVERSELY AFFECT THE VGS LIMIT OF THE MOSFET.??? Hopefully when the “bottoming”.. of the GATE voltage is removed.. MC34063 is switched off… the GATE voltage will become almost 37 volts.!!! and the MOSFET should be turned off.!!!
    which circuit would you suggest rather.?? using this P-channel .. OR rather a saturated N-channel.. driven by the emitter output of the MC34063.. with the collector tied to 37 volts.??? so that the GATE of the MOSFET is hard driven ON..!! by the MC34063…?? Please advise.. ??? I think possibly the saturated N-channel circuit would be better.. in this step down mode.. since the input to output voltage differential is so great.!!!
    I await for any answers.. please .???
    thanking you.. George…

    • Between the scatterbrained explanation and the ridiculous punctuation, I cannot even remotely understand what is being said (or asked?)

  3. Chris Mitchell Reply

    Hello James,

    I don’t know if you are still working with this web page or not. I just wanted to reach out and ask you a question.
    My Vcc for the G pin will be coming from a “rasberry pie” and my power for the D pin is coming from a power source of 12V DC. I activating a door lock. (I believe that it’s a solenoid). I have the N-channel MOSFET in the “low side configuration” and when I hook up the power it turns itself on. Not certain what I’m doing wrong. I’m thinking I need a resistor somewhere. Any help would be great.

    • Sounds like you need a pull-down resistor from Gate to Ground. Something between 1K and 10K. The value isn’t critical.

    • Chris Mitchell Reply

      Between the time you responded and the time that I wrote my question I had been doing some research to remind myself of the answer. I am very happy that you responded with an answer so quickly. I was on that path already, but before I had a chance to test my thoughts you answered and confirmed what I was thinking. Thanks again for responding so timely. I get to end my day on a very “high note!” My circuit works great and I get to help a friend out with a business project that he has been working on for a while. He needed my circuit to complete the process.
      Have a great rest of your memorial holliday!

  4. Very clear – Tks for the example of circuit- it helps to understand

  5. Bret Tschacher Reply

    I ran across a site where a fellow designs motor control systems and also makes his motors over seas, I looked at his circuitry, more than one, in which he shows parallel MOSFET bridges. It looks confusing the way he has them illustrated. To me it looks like he is using both N and P channel FET’s. What I am wondering is he simply drawing the schematic incorrectly or can this actually work this way? The web site is about BLDC motors for go karts and such. I am still trying to get on his site to ask him but haven’t been able to get anywhere yet. I’m not an electronics engineer but do have background and I like to build stuff. In this case it is looking more appealing to simply purchase a controller to start with and work on building my own later.

  6. Hi,

    I am working on a little project where I need the Led “Normally On ” but it will turn off when I apply the positive voltage (+12V) until I remove this +12v and the led will turn back ON again. What kind of MOSFET do you recommend ? Seems like this tutorial will work for my application too but just want to make sure prior to purchase this P channel mosfet. I guess I need the P Channel Depletion Mosfet . Thought ?

  7. Thank you for your great post and video.

    But how we are going to drive the MOSFET if the supply voltage of the load is way higher than the 3.3 or 5 volts of logic?

    For example if we have a 50 volts fan as a load, and we want to drive it by a P-Channel mosfet, we need 50 volts on the gate of the mosfet to keep it off, and something below 50 to turn it on, if I am not wrong.

    I thought I could use a BJT to switch the 50 volts to the gate, but when I want to turn the mosfet ON, the BJT should be OFF so the Gate of the mosfet becomes zero volts, and there will be -50 volts VGS that exceeds the maximum allowed VGS of the mosfet (20 volts typically).

    So how can I switch a high voltage with a P-channel mosfet as a high side switch?

  8. Vinicius Senna Reply

    Perfect tutorial…. I am trying create a simple circuit for switch, 2 source power, when the main power is 0V or disconnected would like put other source power, from battery lipo. I am using mosfet P channel, because i would like know when the main power supply is 0V for turn on other source power. When i place this circuit in protoboard for test.i can see that power supply main return in the mosfet, going this voltage for other side. Everbody say that inside mosfet there are a diode, So this energy cant back for other side, if a measure with multimeter i can see voltage reverse. what way correct for switch 2 power supply without current or voltage reverse? thks

  9. “Why use N-Channel over P-Channel
    We would need to dedicate a tutorial on when to use an n-channel and p-channel MOSFET.”

    I understood the description of your example but only got the label “in this case use p chan” but I wasn’t sure why. So if you do get a chance, a tutorial/deeper explanation of why p is better than n and then any further explanation would be superb.

    Thanks so much for your explanations so far and in particular how to understand/what to look for in the datasheets. You’ve really helped! A great teacher indeed!

    • A simple rule but definitely not inclusive is P is for Positive N is for negative switching. For discussion we will assume a 10V system (keeps the gate circuit simple). If you are doing a high side switch (pulls the load high or positive to turn it on) a P-channel device would be chosen. Conversely if you are doing a low side switch (Pulls the load low or to ground) an N channel device would be chosen.

      Consider the source as the input and the drain as the output. For a P-Channel device with the source connected to the + you drive the gate to the ground. Pull gate to source to turn it off. The opposite is the N-Channel device, it switches the – side (typically called ground), you drive the gate + to turn it on. As before the source is the input and the Drain is the output. Please note these devices have an intrinsic internal PN junction which acts as a diode. If source and drain are reversed it becomes a diode where the voltage drop is based on the channel resistance, not a fixed voltage.

      Yes they can be used as diodes with typically a lower voltage drop then a diode. You will see them used this way in some low voltage high efficiency power systems. This internal “diode” is “ruggedized” in many devices and is designed and tested to withstand a UIS (Un-Clamped Inductive Spike). Some manufacturers test this parameter on every device. This is saying it can replace the fly back diode in most applications. Remember when an inductor discharges it reverses polarity and allows the voltage to climb until limited by some external means. The substrate diode (PN Junction) will clamp this to a few hundred millivolts. This PN junction is a basic part of the MOSFET structure not added later.

      No mater which way you connect the source and drain the MOSFET will conduct, if it is reversed you will not have any control with the gate, your choice. I am not going to get into it here but there are many different circuits with and without charge pumps that can for example use a N-Channel device as a high side switch.

      • I like the simplified idea of “P is for Positive” and “N is for Negative.” I might use that in the future! 🙂 Thanks for the comment.

        • “P-Channel MOSFET Tutorial with only Positive Voltages”
          Why use N channel devices to illustrate P-Channel MOSFET Tutorial with only Positive Voltages?

          • It’s a P-Channel. Annoyingly, this symbol style is drawn with the error opposite of other symbol types. It is an IEEE standard symbol.

  10. Gil Shultz Reply

    What is commonly missed is where the reference point is. That is the point where you base all your measurements. The polarity of a MOSFET is referenced from the source. That is where you would connect the ground of your volt meter. Doing it that way the datasheet is correct regardless if P or N channel. Simply think as the black wire or ground is your reference point. It always works for me.

  11. Thanks a lot for this detailed explanation ; would you have any idea of how it works at the level of the electrons flow? this is because we always see the drawing of the P-Channel where they say that some negative charges are needed at the gate to push the electrons away and cut the flow. I still can not figure it out in a CMOS when the same direction current can both apply negative charges on the P and positive ones to the N. I’m sure that my question is silly but forgive me I’m just a biologist with some interest in electronics…

    • You’re confusing voltage polarity with electron charge. Electron charge is always negative. In a semiconductor, there are charge carriers in a channel. The voltage (electric field) changes channel, enabling the carriers more mobility. In a P-Channel, a negatively biased electric field is necessary for the channel to become active. That “negative” has nothing to do with an electron charge. Nor does the voltage have to be “negative.” The voltage at the gate just has to be less than the voltage at the source, thus creating a “negative voltage” when looking from Gate to Source.

  12. While performing a diode test with a multimeter (red probe on Source pin and black probe on Drain pin) on an stand-alone (not in-circuit) NMOS, I get a 0.5V reading which is expected. However, when the NMOS is placed in-circuit (soldered onto PCB) where the Source pin is connected to ground plane, I get 0.135V. Circuit is not live. Is the 0.135V to be expected or should it read 0.5V?

    I’m wondering if the 0.135V reading is valid due to the Source pin being connected to ground plane or if it is a botched soldering job.

  13. Sorry for the newbie question, but what exactly does the resistor on the gate do? I’m connecting the gate to an arduino so guess I’d need that resistor in between the gate and the arduino, but I’m not sure what it does. Thanks in advance!

    • The gate of a MOSFET is a capacitor. Depending on the size of the FET, that capacitor can be large enouogh to cause damage to an I/O pin. So the transistor limits the current. Anything between 100 to 1000 ohms works fine.

  14. Peter Duxbury Reply

    In the whole of my learning about MOSFETS, I could not see just how the gate of a p-channel MOSFET could possible be a negative voltage value – to turn-on the MOSFET. For almost a week of searching ‘other’ sites for more information, I stumbled upon your great explanation! Your Tutorial really highlights an issue that would cause deep frustration in many electronic Hobbyists. So thankful that I stumbled upon your Tutorial. Greetings from Australia.

  15. “Using different words, you might read it as: subtract the GATE voltage value from the SOURCE voltage value.”

    I think you mean the reverse. In your second example, your statement shows 5-0 which is +5. You want gate, 0, minus source, 5. So -5. Subtract gate off source.

    Other q. Using arduino i/o, 5v high. Source is 12v. I imagine the Vgs is either -12 or -7 hence, always on? (P chan config). Guessing I need a transistor before the gate, to send 12v to the mosfet, thus inverting how I drive it (with a low)?

    • I’ve finally realized a way to re-word it just using “Minus”instead of subtract.

      I need a transistor before the gate

      It’s called a “driver.” This post has an example where I drove a PNP transistor with a NPN driver. Also, just a minor point, you never “send” voltage, you can only “apply” it.

      • True about apply. Same with a Low, it is not a send, rather, a sink.

        Great edit on the wording change. MUCH clearer now. 🙂

        I bought a whack of N Chan boards for my arduino, was going to use on the truck’s headlight LED rings and other. Problem is, I cannot get to the neg, ergo, ground, to make it a Low side N chan circuit to work with those mini boards. The ground and source are also bridged on those. I May unsolder the mosfet, try a high side with that N using 12v.

        Cheers

  16. Hi, Very nice addohms video as usual. I have a logic level n-channel mosfet(FQP30N06L) and switchin on-off by appliying 0 and 3.3v Vgs from a gpio pin. Drain side I have a load operates at +5V. After the pc turns off, PC pulls up +5V all GPIO pins(Vgs). As a result after pc turns off, it turns on the load again. How can I prevent the gate voltage if more than 5V at the logic level mosfet? Best.

    • I don’t understand your question. You may need to use a P-Channel FET as a high-side switch. Or you may need to add a pull-down resistor to the N-Channel’s gate.

      • Thanks for the reply. Let me explain again. We simply control a load by using a gpio pin on the gate side of mosfet. From the industrial pc software, it gives 3.3 and 0 volts for high and low to the gate. But when we shut down the industrial pc, it pulls up all gpio pin to 5V(we dont know why) I would like to prevent the load to turn on if the gate voltage is higher than 3.3volts(it can be 4.5V also according to vgs threshold). Hope this is clear. Best.

        • If your driving signal tends to float high, I would suggest replacing the circuit with a p-channel high-side transistor. On the N-Channel, you could also try using an NPN to invert the driving voltage.

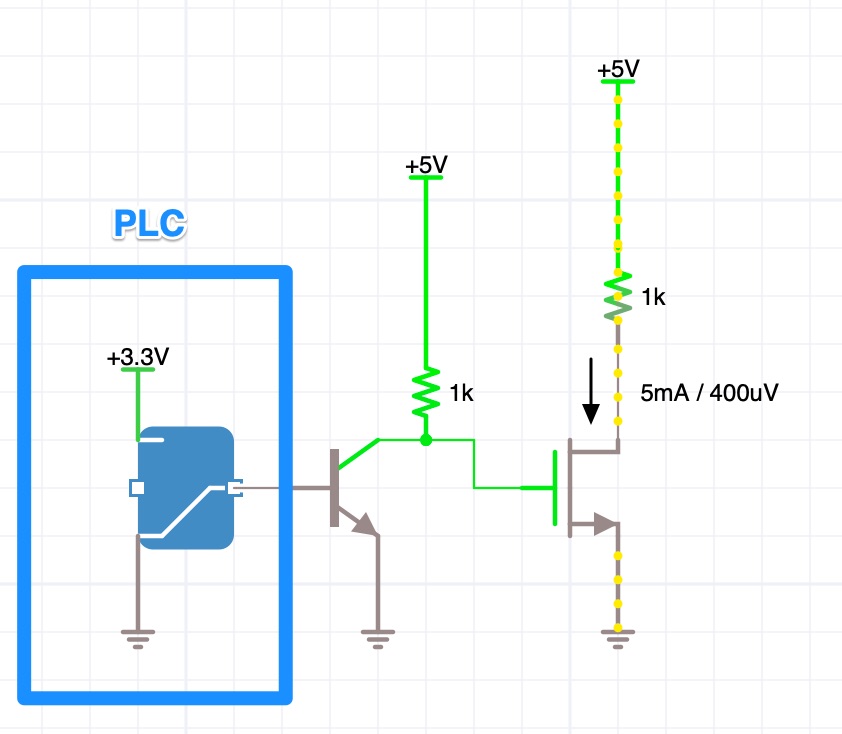

          NPN Inverter
