Awesome 3D Board (BRD) Viewer for EAGLE

http://3dbrdviewer.cytec.bg
2018-JULY-18 UPDATE: It appears Peter has shut down his rendering tool. It is no longer available.
3D Render of MSO Demo Board
3D Render of MSO Demo Board

Earlier I posted a PCB Checklist of items to double-check when sending your board out to a fab. The Dangerous Prototypes blog pointed to a 3D EAGLE PCB tool from a Bulgarian-based developer called Cytec that takes an EAGLE BRD file and renders it in 3D for you.

The example board I have above is a render of my MSO Demo Board. And I have to be honest, it looks much like that one!

Generated from a database of 200 models, there are bound to be a few missing. Even in my case, the 1206 LED was missing, but I substituted a 0805 package. There wasn’t through-hole crystal. If I had the STP file though, it’d be no problem to upload it.

Several colors are available to render the image, but Purple isn’t one of them (sorry OSH Park!)

As long as your browser supports OpenGL, you’ll get a nice 360 view of the board. There are some EAGLE ULP scripts to do similar things, but none are as simple as drag-and-drop on Cytec’s tool.

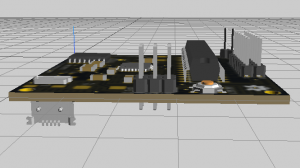

One issue I ran into, the Mini-USB Connector I use on some of my boards didn’t render correctly, here is the output from my latest revision of BinBoo. Overall though, very nice job, very easy to visualize what the final board will look like.

Binboo PCB 3D Render
Binboo PCB 3D Render

Check out the tool on Cytec’s web site: http://3dbrdviewer.cytec.bg.

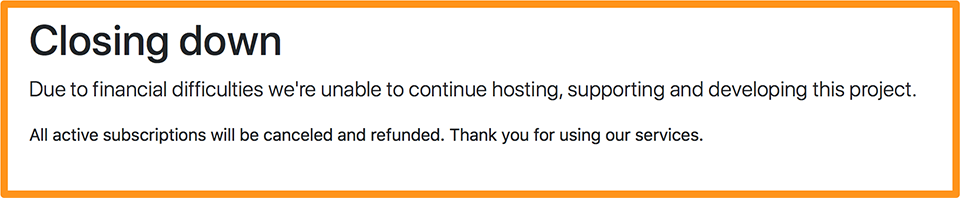

2018-JULY-18 UPDATE: It appears Peter has shut down his rendering tool. It is no longer available.

Shutting Down

Fan of making things beep, blink and fly. Created AddOhms. Writer for Hackster.io News. Freelance electronics content creator for hire! KN6FGY and, of course, bald.

6 Comments

  1. I LOVED this viewer and am completely bummed out that it is down. I wish Peter had given us an opportunity to raise funds for it with some warning before it was shut down 🙁

    • He reached out to me months ago. He tried moving to a pay model, but it didn’t seem to work out. I think the work that Autodesk is doing will render his tool obsolete anyway.

      Though, I do miss how easy and well it worked.

      • I dont think autodesk would make a great tool like this obsolete. Autodesk is a walled garden and a large corporate for-profit model with many barriers for setup and installation. Peter’s project was ideal for client presentations on-the-fly and quick mock-up fixes without needing to install things. It was light weight, and had good shading and other upgrades as well. I hope he brings it back some day. The pay model appeared to be optional but I would have gladly signed up for a subscription if I knew it meant the life of the project.

  2. Hi guys,

    There is a 3D visualisation tool developed as a workbench for the FREECAD application. The stuff is free, you are the owner and it is absolutely not bound to any website or cloud appliance whatsoever.

    The FREECAD application :
    http://www.freecadweb.org/wiki/?title=Download

    The Workbench :
    https://sourceforge.net/projects/eaglepcb2freecad/

    The website where you can find free parts ( I advise you choose the STEP download format ) to grab and integrate in your solution :
    http://www.3dcontentcentral.com/Default.aspx

    This way you can have a 3D rendered PCB and you can also develop a corresponding case around it for 3D printing or integrate it to any other electrical or mechanical product. FREECAD is in itself a good CAD software compatible with a lot of widely used CAD file formats, so it probably worth a peek.

    The PCB workbench will import your .brd straightforward, by opening it in the EAGLE project folder …

    I’m using all this in LINUX and it works very nicely !

    Cheers,

    Paul.
