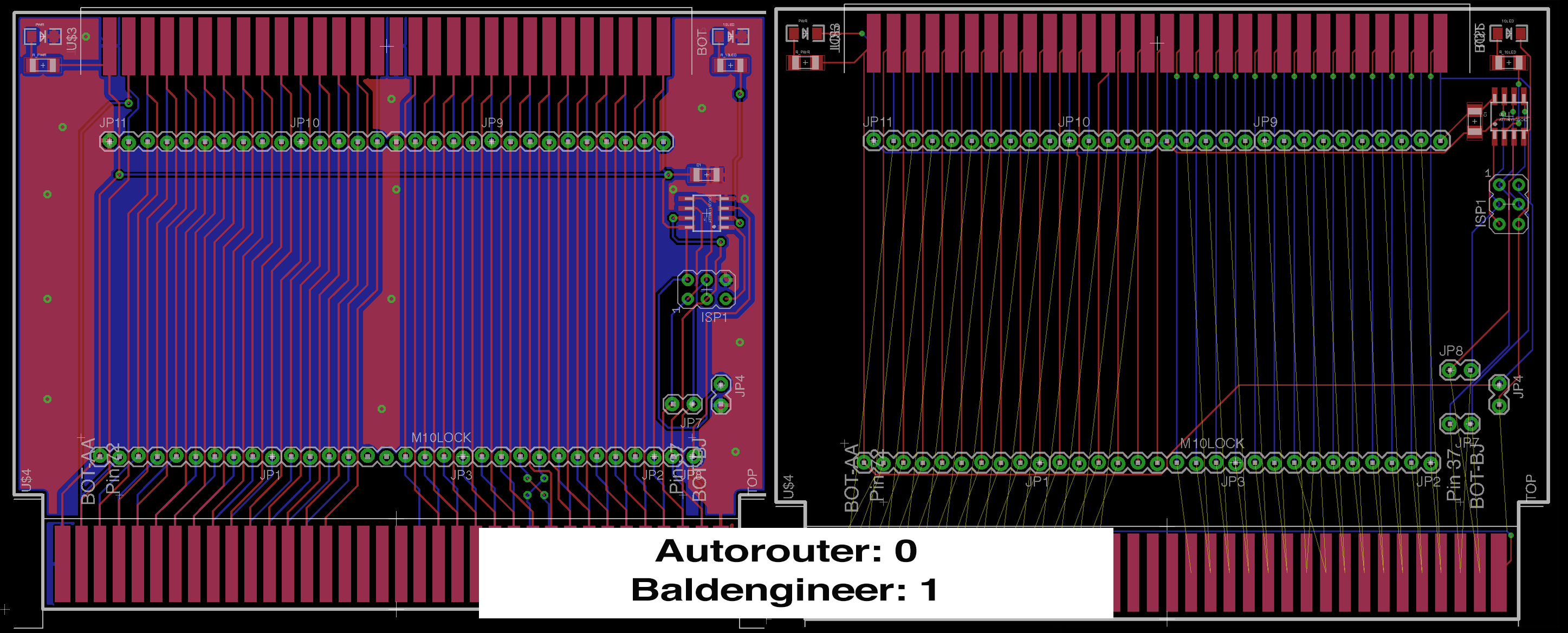

I am not a fan of relying on the Autorouter in EAGLE — or any PCB CAD software for that matter. When laying out a board, I’ll use the autorouter to get an idea if the part placement is going to work or not. In this case, I was reminded how much autorouters suck! Even after running for while, the autorouter could only route up 50% of the nets (signals).
Never Trust The Autorouter
As Chris Gammell‘s T-Shirt Says, Never Trust The Autorouter.
It only took me about 20 minutes to start over and finish the manual layout. I still want to clean it up a little, but over all, I beat the Autorouter.
What is the board anyway?
In January I visited Tokyo on my annual work trip. While there, I ran over to Akihabara to check out a used media store called Traders. The multi-level store (like all those in Tokyo) sold used video games and movies. Each floor featured different platforms. My favorite was the 2nd floor which was all retro 8, 16, and 32 bit systems. Piles of Famicoms (NES), Super Famicoms (SNES), Mega Drives (Genesis), and other systems were all around. In the middle of the floor were racks of cartridges.
While there I picked up a couple of Rockman (Mega Man) carts, Super Mario brothers, and even Adventure island.
A US-based NES can play Famicom games since the basic hardware is the same. However, the pin outs are slightly different. Also, US-based NES systems look for a lock-out ship (CIC) that Famicoms don’t have. Fortunately I ran across a project that uses the ATtiny (AVRCICZZ) to emulate the lockout chip. So armed with that and some pinouts, I’ve created an adapter.
Keep subscribed, after a few more touches, I’ll post the EAGLE files as an Open Source Hardware (OSH) project.
3 Comments
I’m new to Eagle and designing PCBs. Right now I’m trying to design some NES discrete boards but I’m having trouble with designing the edge connector. how did you create yours? is the a library for it or did you create your own? Do you still have the library for it?
Very cool. Would love to see the adapter posted. I am make a breakout to sniff the cartridges right now, and having something to work off of for pin spaces/sizes would be great for learning 🙂
I think I reversed the wrong pins. Games aren’t booting correctly. Since I did the board, I came across an actual Famicom to NES adapter. I just need to spend some time ohming it out. Here’s the files as-is. rev1 was the PCB I had made. I started modifying it in rev2 (starting with shortening it just a little bit.) https://www.baldengineer.com/wp-content/uploads/2015/07/FAM2NES-rev1-2-sorta-EAGLE-files.zip
