Minor updates to the Open Source Reflow Oven Project

The next stage of the reflow oven project is moving to a custom PCB for the controller electronics.  Overall the board is based on the ATmega32u4 with a DS3231 RTC.  The LCD module is intended to be driven by one of Adafruit’s Serial backpacks.  There is an area of LED indicators (something I learned from a previous project) and some extra VCC/GND pins sprinkled about.

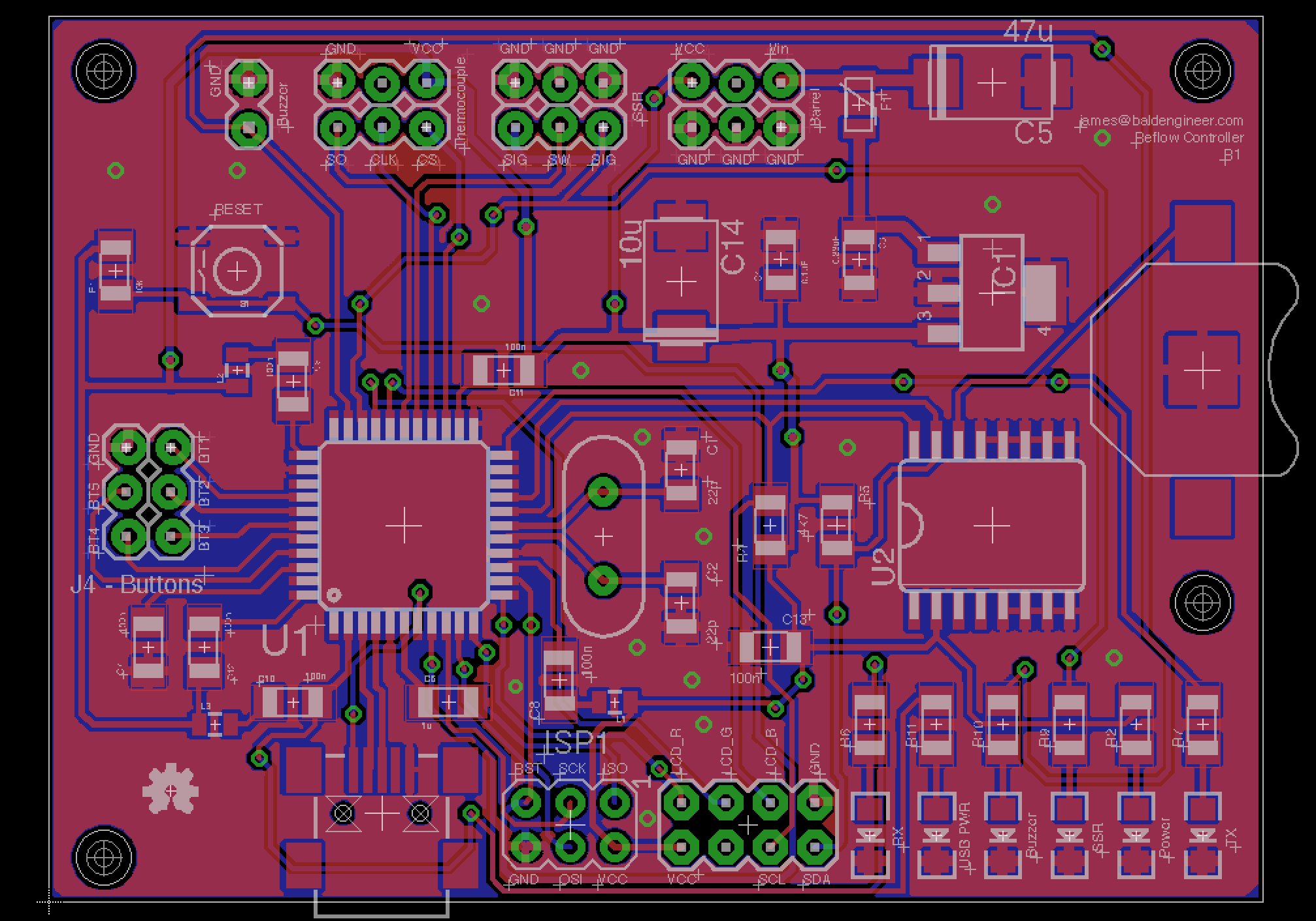

Screenshot of the controller board laid-out.

Screenshot of the controller board laid-out.

Additionally I am working on a re-work of the enclosure which is based on the dimensions of a Rigol benchtop DMM.  I’ll be working on that while I wait for the boards to come back from SeeedStudio.

All of the files and notes can be found on the Reflow Oven Project Page.
