Accurate RTC Shield

DS3231 Shield with Katpon Tape Stencil

Status:  In Progress, Last Update:  October 14, 2012

GiHub:  https://github.com/jamesc4s/Accurate-RTC-Shield

Abstract

The DS3231 is a Precise Real-Time Clock from Maxim. It requires almost no external components and is temperature compensated. This chip solves some of the RTC issues associated with the DS1307. This Arduino shield will make it simple to add a RTC to any project, especially one where lost time is not acceptable.

Continue Reading »

(Accurate) RTC Shield Rev2

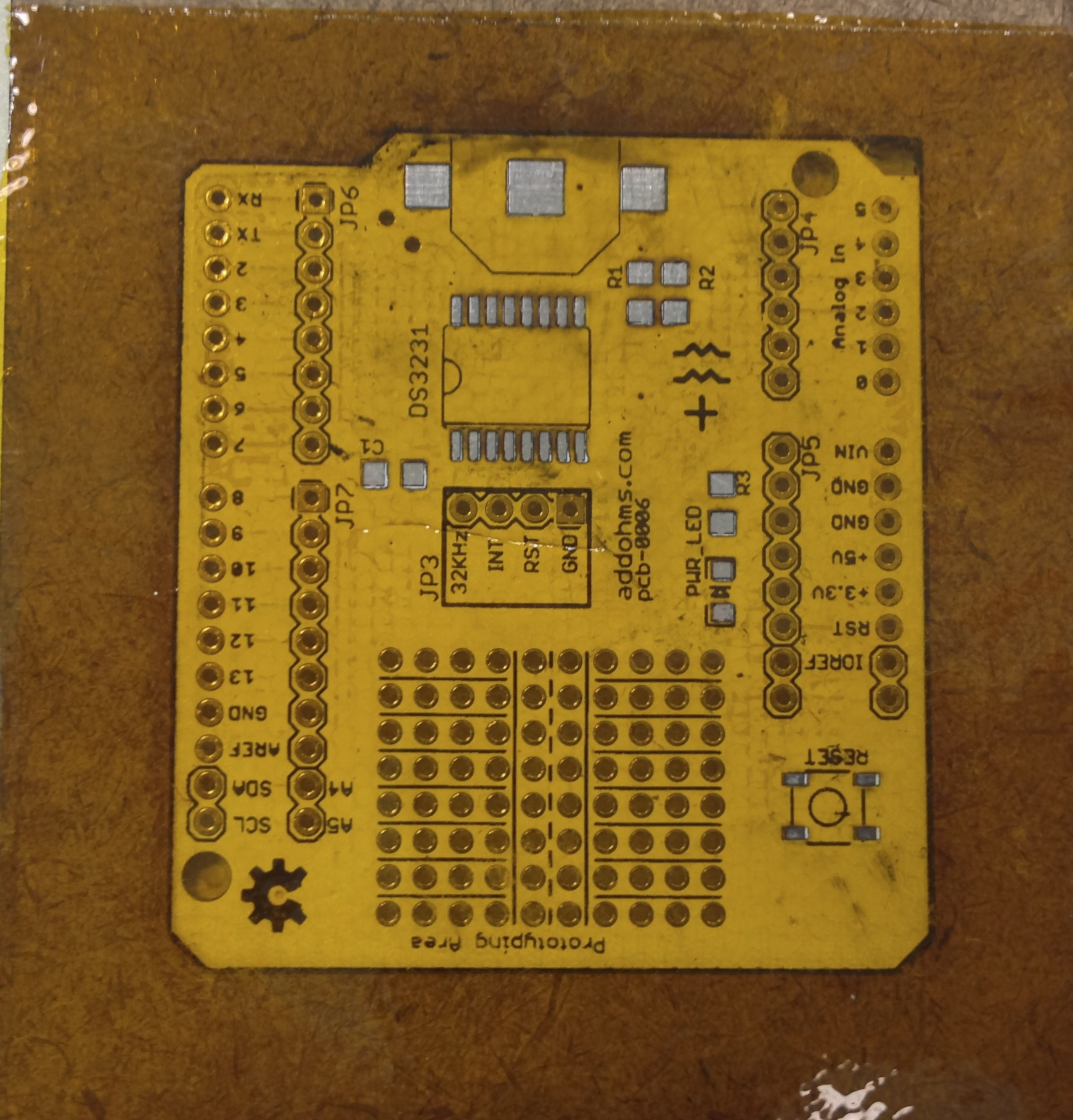

Accurate RTC Shield with Kapton Stencil

Accurate RTC Shield with Kapton Stencil

For the past couple of weeks I have been working with the DS3231 Maxim. This chip is a I2C based RTC with an integrated temperature compensated oscillator and crystal.This means despite changing temperature conditions, it will maintain a very accurate track of time. If you’re interested in the first rev of the PCB, let me know. I have a few available. They are functional, however, the prototyping area came bad.I have a set of new ones with a proper prototyping area, reset button, and power LED in process.

Check out more on the  Accurate RTC Shield Project Page
